of.geometry.cut.square#

of.geometry.cut.square *new_geometry_tag* <string> *object_geometry_tag* <string> *region* <double, double, double, double>

Cut a geometry in existing geometry using the square method.

Note

There are three rules to follow:

  • rule 1, the object should already exist.

  • rule 2, the region is for the new geometry.

  • rule 3, it just cut the object into several parts, but the fragments still have the object tag.

Parameters:

new_geometry_tag: tag of the geometry group cut from the original geometry.

object_geometry_tag: tag of the original geometry group

region: There are three methods to define a sqaure:

  1. [xmin. xmax. ymin, ymax]

  2. x [xmin, xmax] y [ymin, ymax]

  3. xmin value xmax value ymin value ymax value


Example:#

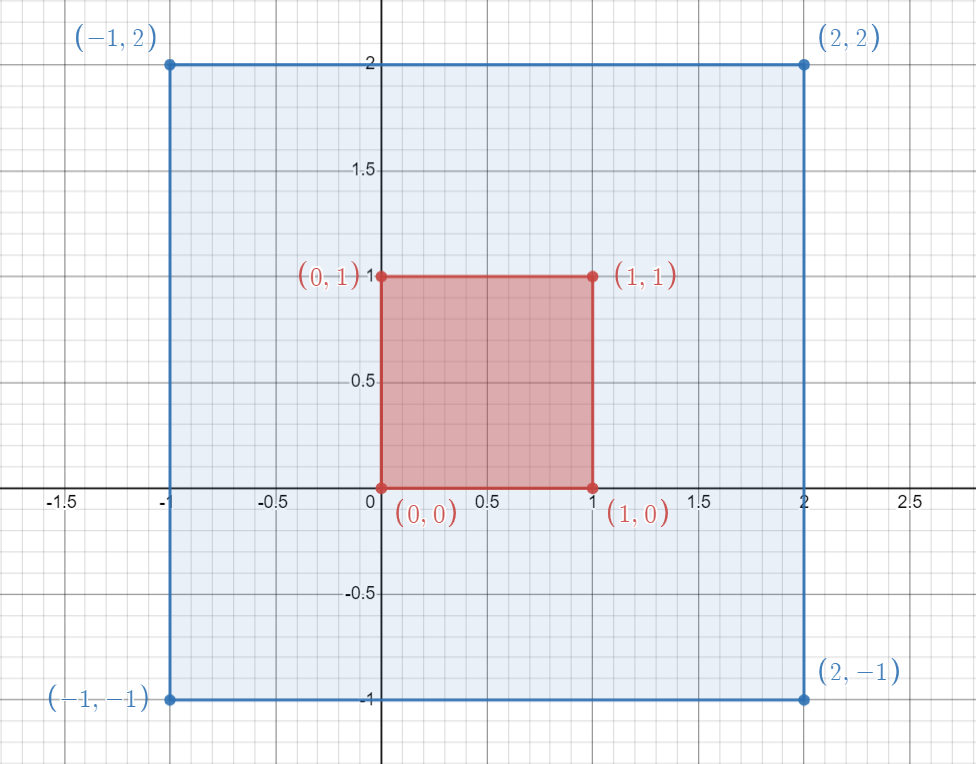

of.geometry.cut.square [tunnel] [rock] x [0 1] y [0 1]
Square
