of.geometry.remove.circle#

of.geometry.remove.circle *new_geometry_tag* <string> *object_geometry_tag* <string> *region* <double, double, double, int>

Remove the geometry in the object by assigning x, y, radius and segments of the circle.

Note

There are three rules to follow:

  • rule 1, the object should already exist.

  • rule 2, the region is for the new geometry.

  • rule 3, the new object will be removed but the curves will be reserved to refine the mesh size.

Parameters:

new_geometry_tag: tag of the geometry group cut from the original geometry.

object_geometry_tag: tag of the original geometry group

region: (default nseg 20) There are three methods to create a circle:

  1. [x, y, rad, nseg]

  2. center [x, y] radius nseg

  3. x value y value rad value nseg value


Example:#

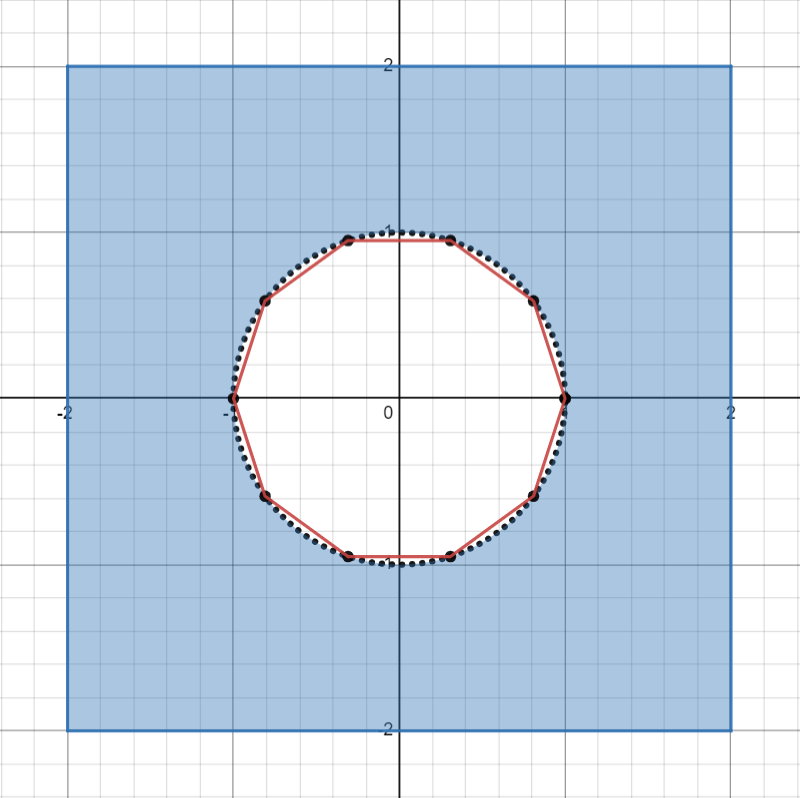

of.geometry.remove.circle [tunnel] [rock] center [0,0] rad 1.0 segments 10
Circle_Removes
